Ducted Split Air Conditioning Systems – Concealed Central Cooling for Villas and Commercial Spaces
Central ducted split AC systems offering hidden, quiet, and efficient cooling for homes, offices, and retail environments.
Our Ducted Split Air Conditioning Systems provide a discreet and efficient solution for central cooling across multiple rooms or zones. These systems consist of a concealed indoor unit connected to a central duct network, allowing for uniform airflow and temperature control throughout the building. Ideal for villas, apartments, offices, clinics, and retail stores, ducted units deliver high-capacity cooling while maintaining a clean ceiling aesthetic. With inverter-driven compressors, flexible ducting options, and zone control compatibility, this system ensures comfort, energy efficiency, and seamless integration into modern interior designs.
-
Concealed indoor unit with ducted airflow
-
Inverter compressor for energy savings
-
Uniform cooling across multiple rooms
-
Low-noise operation with insulated ducts
-
Zone temperature control (optional)
-
Compatible with false ceilings and limited spaces
-
Washable air filters and easy maintenance
-
Thermostat and remote control panel
-
Optional fresh air intake integration
-
Suitable for cooling and heating modes
-
Cooling Capacity: 18,000 – 60,000 BTU
-
Power Supply: 220–240V / 50 Hz
-
Static Pressure: Medium to High
-
Refrigerant: R-410A or R-32
-
Compressor Type: Rotary or Scroll Inverter
-
Airflow Volume: 800 – 2000 m³/h
-
Noise Level: 30–45 dB
-
Return Air: Bottom or rear return options
-
Filter Type: Washable mesh filter
-
Control: Wired wall-mounted thermostat

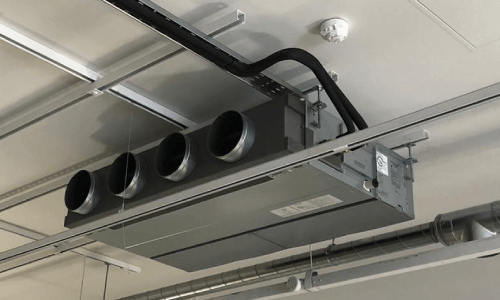

Fully concealed installation with duct outlets and ceiling grilles, keeping indoor aesthetics clean and modern.
Optional smart home integration, compatible with BMS systems, and remote app-based monitoring.
