High-Static Ducted Split AC Systems – Powerful Central Cooling for Multi-Zone Applications
High-static pressure ducted split systems designed to deliver strong airflow and zoned cooling for restaurants, clinics, and medium-sized commercial properties.

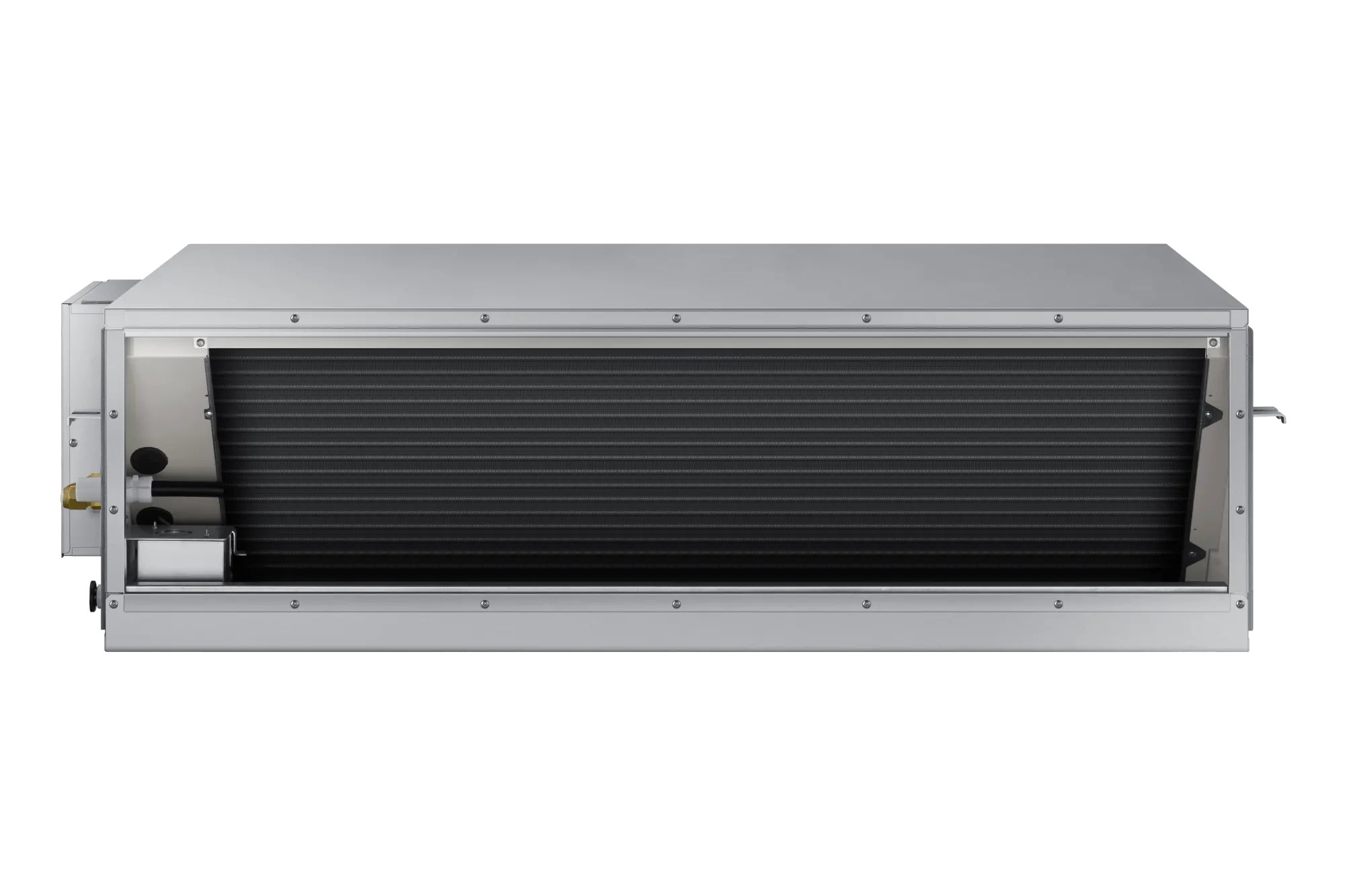

Our High-Static Ducted Split AC Systems are built for flexible duct routing and powerful airflow delivery across multiple zones or rooms. With their high static pressure design, these systems can be connected to long duct networks, making them ideal for restaurants, clinics, showrooms, office floors, and retail chains. The concealed indoor unit integrates easily with ceiling architecture while providing centralized cooling and quiet operation. With inverter compressors, zone controller compatibility, and energy-efficient operation, these ducted systems are engineered for buildings that require tailored climate control and reliability.
-
High static pressure design (up to 200 Pa)
-
Long duct runs for multi-room distribution
-
Concealed ceiling-mounted indoor unit
-
Inverter scroll compressor for high efficiency
-
Quiet operation with noise insulation
-
Washable filters and drain pump support
-
Individual room temperature control (with zone kit)
-
Compatible with low ceiling installations
-
Fresh air intake and exhaust options
-
Cooling and heating operation modes
-
Cooling Capacity: 36,000 – 72,000 BTU
-
Power Supply: 380V / 3 Phase / 50 Hz
-
Static Pressure: Up to 200 Pa
-
Refrigerant: R-410A / R-32
-
Compressor: Scroll Inverter
-
Airflow Volume: 1500 – 2800 m³/h
-
Noise Level: 40–52 dB
-
Installation: Ceiling-concealed with rear/bottom return
-
Controls: Central thermostat + optional zone controller
-
Filters: Washable G4 mesh
Designed for horizontal ceiling installation with flexible ducting layouts. Minimal visual impact on room interiors, with grille-only visibility.
Supports connection to Building Management Systems (BMS), zone control kits, and remote app monitoring for advanced HVAC control.
