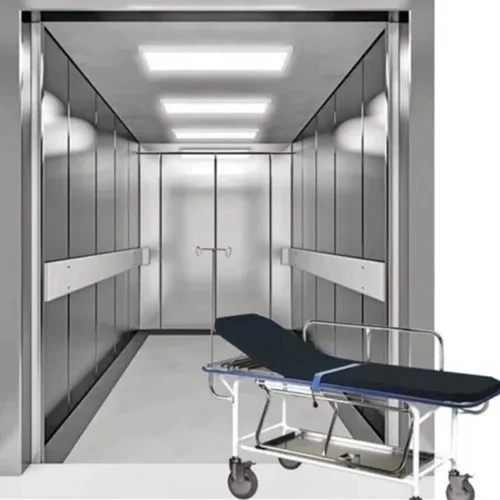

Hospital Bed Elevator – Compact & Efficient Lift for Medium-Sized Medical Facilities
A reliable hospital bed elevator optimized for smooth patient transfer in medium-sized clinics, recovery centers, and private hospitals.
This compact hospital bed elevator is tailored for healthcare institutions that require efficient patient and equipment movement but have limited shaft space. With optimized cabin dimensions and energy-efficient traction or hydraulic systems, the lift ensures a gentle ride for patients on stretchers or beds. Its antibacterial surfaces, intuitive control panel, and precise leveling make it a safe and hygienic solution for recovery rooms, outpatient wings, or diagnostic floors.
-
Compact design for smaller shaft dimensions
-
Load capacity from 1000 kg to 1600 kg
-
Supports hospital beds, wheelchairs, and attendants
-
Optional side or rear door opening
-
Precise floor leveling for easy entry/exit
-
Low noise and vibration levels for patient comfort
-
Antimicrobial materials inside cabin
-
Optional handrail, mirror, voice guide, and floor indicator
-
Ideal for rehab centers, private clinics, and specialty units
-
Load Capacity: 1000–1600 kg
-
Speed: 0.4 – 1.0 m/s
-
Cabin Size: e.g., 1100 x 2100 mm, 1200 x 2200 mm
-
Travel Height: Up to 30 meters
-
Power: 380V / 3-phase, 50 Hz
-
Control: Microprocessor with soft start/stop
-
Drive System: Gearless traction or hydraulic
-
Doors: Automatic, wide opening – center or side
-
Emergency Features: ARD, alarm, battery backup
Cabin optimized for tight spaces with non-slip flooring, antibacterial finishes, and intuitive vertical handrails. Designed for ease of entry and full access for wheelchairs or mobile medical devices.
Optional integration with nurse call systems, fire safety systems, and building automation for real-time elevator status and emergency control.
